Type
Ducati V2 engine: 90° V2, 4 valves per cylinder, intake variable valves timing system, liquid cooled
Displacement
890 cc (54.3 cu in)
Bore and stroke
96 mm x 61.5 mm (3.8 in x 2.4 in)
Compression Ratio
13.1:1
Power
111 hp (81.6 kW) @ 9,000 rpm
Torque
91.1 Nm (9.3 kgm, 67 lb ft) @ 7,250 rpm
Fuel injection
Electronic fuel injection system. One injector per cylinder. Full ride-by-wire.
Exhaust system
2-1-2 system
Gearbox
6 speed with Ducati Quick Shift up/down 2.0
Primary drive
Straight cut gears; Ratio 1.84:1
Ratios
1=38/14 2=34/17 3=32/20 4=29/22 5=24/21 6=26/25
Final drive
Chain 520; front sprocket 16; rear sprocket 42
Clutch
Hydraulically controlled slipper and self-servo wet multiplate clutch. Self bleeding master cylinder
Frame
Monocoque Aluminium
Front suspension
Showa Ø 43 mm usd fork
Front wheel
Casted light alloy, 3.50" x 17"
Front tyre
Pirelli Diablo Rosso IV, 120/70 ZR17
Real suspension
Showa monoshock with adjustable preload. Aluminium double-sided swingarm
Rear wheel
Casted light alloy, 5.50” x 17”
Rear tyre
Pirelli Diablo Rosso IV, 180/55 ZR17
Wheel travel
130 mm / 145 mm (5.1 in / 5.7 in)
Front brake
2 x Ø 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 4-piston calipers, radial master cylinder. Cornering ABS
Rear brake
245 mm disc, 2-piston caliper. Cornering ABS
Instrumentation
Digital dashboard with 5'' full-colour TFT display, 800 x 480 px resolution; 16:9 ratio
Wet weight
175 kg (386 lb)
Seat height
815 mm (32,1 in) 795 mm (31,3 in) with low seat accessory 775 mm (30,5 in) with low seat accessory + low suspension kit
Wheelbase
1,492 mm (58.7 in)
Rake
23.3°
Trail
92 mm (3.6 in)

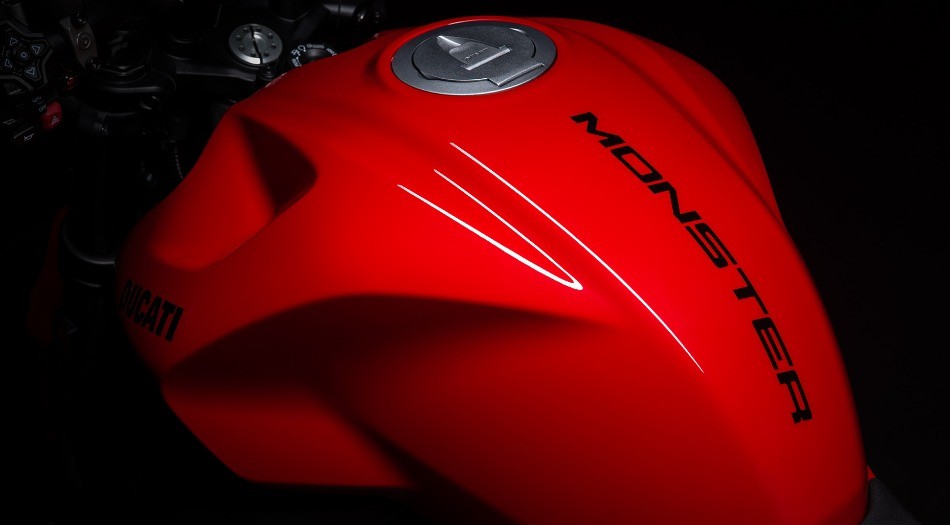

Fuel tank capacity
14 l (3.7 US gal)
Number seats
2
Safety equipment
Riding Modes, Power Modes, Ducati Traction Control (DTC), Ducati Wheelie Control (DWC), Engine Brake Control (EBC), Bosch Cornering ABS, Ducati Brake Light (DBL), Auto tyre calibration
Standard equipment
Ducati Quick Shift (DQS) up/down 2.0, Coming Home, TFT colour display, Full LED lighting system, Daytime Running Light (DRL), Dynamic turn indicators, Self cancelling turn indicators, Lap Timer, Flyscreen, Passenger seat cover
Ready for
Anti-Theft, Tyre Pressure Monitoring System (TPMS), Cruise control, Ducati Multimedia System (DMS), Heated grips, Turn-by-Turn navigation system, USB port, Ducati Power Launch (DPL) Availability of some accessories may vary. Please check with your dealer.
Warranty
24 months, unlimited mileage
Valve clearance check
45,000 km (28,000 mi)
Standard
Euro 5+
Co emissions
120 g/km
Consumption
5.2 l/100 km
